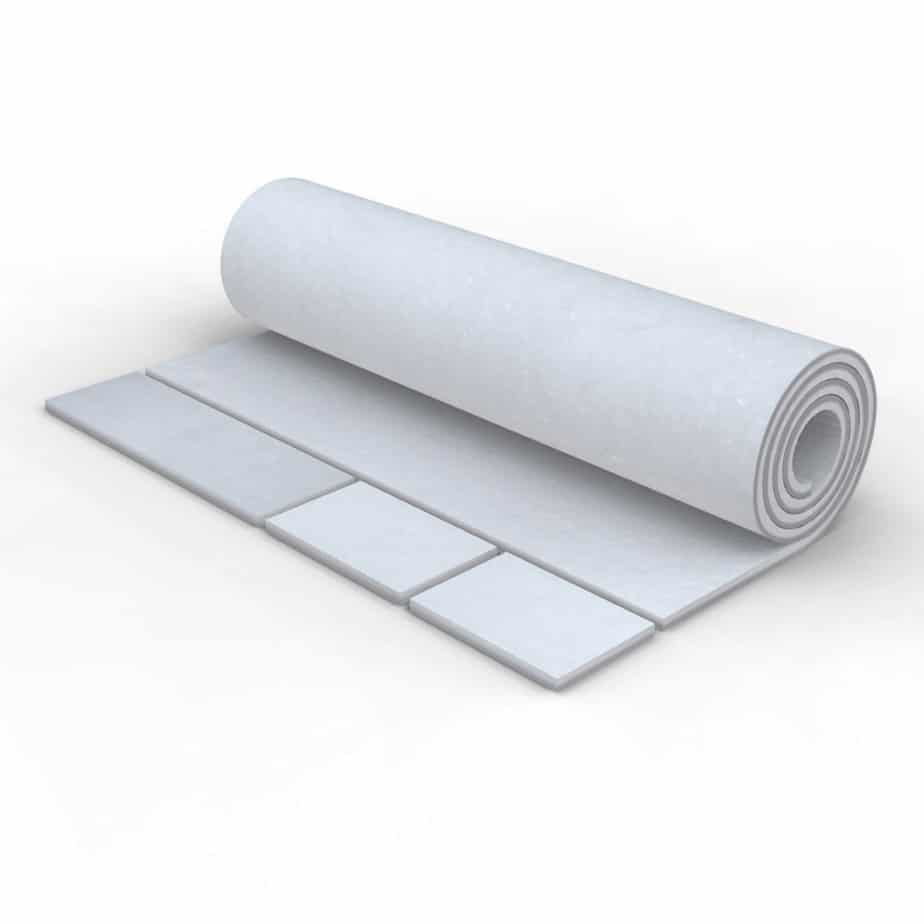

Poly 600 Filter Media

Ceiling media/final filtration in Spray Cabins/Automotive Industry
Manufacturer: Deltrian

Advantages

  • Cut pads available
  • Long lifetime
  • Low pressure drop
  • High mechanical resistance
  • Impregnation in the core of the media prevents any release of particles > 5 µ
  • Reinforced media on clean air side, ensuring the media holding and stability through time
  • Self-extinguishing media according to DIN 53438-F1 European standard, and UL900-class 1 Americal standard
  • Approved by major car companies

General Features

  • Efficiency: ePM10 50% and ePM10 70% ISO 16890 (M5-M6 EN779)
  • Media: Synthetic
  • Final pressure drop: 450 Pa
  • Maximum T° in continuous service: 100 / 120°C
  • Humidity: 100% RH

Advantages

  • Cut pads available
  • Long lifetime
  • Low pressure drop
  • High mechanical resistance
  • Impregnation in the core of the media prevents any release of particles > 5 µ
  • Reinforced media on clean air side, ensuring the media holding and stability through time
  • Self-extinguishing media according to DIN 53438-F1 European standard, and UL900-class 1 Americal standard
  • Approved by major car companies

General Features

  • Efficiency: ePM10 50% and ePM10 70% ISO 16890 (M5-M6 EN779)
  • Media: Synthetic
  • Final pressure drop: 450 Pa
  • Maximum T° in continuous service: 100 / 120°C
  • Humidity: 100% RH
Products specifications
Attribute nameAttribute value
Temperature Rating (°C)110
MediaSynthetic
EfficiencyePM10 50% and ePM10 70% ISO 16890 (M5/M6 EN779)
Final Pressure Drop (pa)450
*
*
*
*
Products specifications
Attribute nameAttribute value
Temperature Rating (°C)110
MediaSynthetic
EfficiencyePM10 50% and ePM10 70% ISO 16890 (M5/M6 EN779)
Final Pressure Drop (pa)450
