Picture of Rund Picture of Rund Picture of Rund

Rund

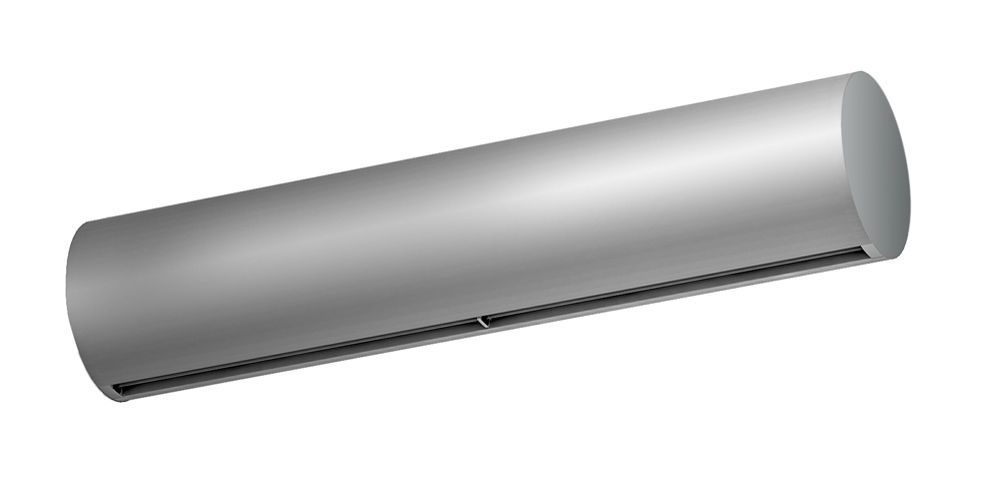

The RUND air curtain is specially designed for doors of shops and buildings with high demands on design and low noise level. RUND is a cylindrical, elegant and exclusive air curtain that can be installed in horizontal or vertical position. The RUND air curtain has multiple finishes and configurations that make it the decorative solution suitable for any interior design project.
  • Decorative cylindrical air curtain for vertical or horizontal installation.
  • Faceted self-supporting casing construction made of galvanized plated steel, finished in structural epoxy-polyester painting white RAL9016 or silver grey RAL9006 as standard. Other colours or stainless steel are available on request.
  • Large faceted inlet grille avoiding intensive maintenance.
  • Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side.
  • Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans.
  • “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
  • Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
  • Decorative cylindrical air curtain for vertical or horizontal installation.
  • Faceted self-supporting casing construction made of galvanized plated steel, finished in structural epoxy-polyester painting white RAL9016 or silver grey RAL9006 as standard. Other colours or stainless steel are available on request.
  • Large faceted inlet grille avoiding intensive maintenance.
  • Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side.
  • Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans.
  • “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
  • Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
*
*
*
*
